Ample Alloys is globally accepted Manufacturers and Exporters of ASTM A286 Inconel 660 Elbow, ANSI B16.9 Alloy 660 Tee, UNS S66286 Reducers, A-286 DIN 1.4980 Cross, MSS-SP-43 Seamless Stub Ends, End Caps, Inconel 660 Butt Welding Bends.
Table of Content
- ASTM A286 660 Inconel Buttweld Fittings Specifications
- UNS S66286 Buttweld Fittings Chemical Composition
- WERKSTOFF NR. 1.4980 Buttweld Fittings Mechanical Properties
- A-286 Alloy 660 Buttweld Pipe Fittings Equivalent Material Grades
- Alloy 660 Buttweld Pipe Fittings Types
- Inconel 660 Similar Products
- Inconel Alloy 660 Buttweld Fittings Applications
- In Stock Pipe Fittings Inconel Grades
- ANSI Buttweld Fittings Dimensional Tolerances
- ASME B16.9 Buttweld Fittings Dimensions
- Butt Weld Fittings Weights Chart
Mumbai, India based Suppliers of Inconel 660 Pipe Fittings with Dimensions, Diagram, Equivalent Grades, Material Properties, Pressure Rating, Specifications, Sizes, Type, Temperature, Weight Chart. Get Best Price List of Inconel 660 Fittings in Australia, Italy, America, Canada, Latin America, Qatar, Kuwait, Dubai.

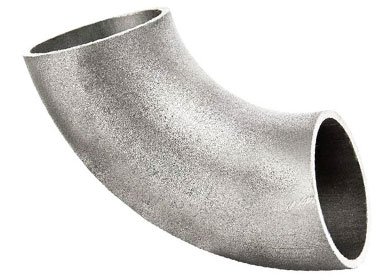

Inconel 660 Buttweld Pipe Fittings Specifications
- Welded Pipe Fittings Size: 1/2″ – 72″
- Seamless Butt Weld Fittings Size: 1/2″ – 24″
- Specifications: A-286
- Standards: ANSI/ASME B16.9, MSS-SP-43/48/59, ASME B16.28, B16.25
- Thickness Range: With NACE MR 01-75: Schedule 10, Schedule 40, Schedule 80, XS, XXS and SCH 160
- Material Grade: Inconel Alloy 660
- Type: Seamless Fittings / Welded Fittings / Fabricated Fittings
- Grades: Inconel 660 / 1.4980 / UNS S66286
- International Specifications: WERKSTOFF NR. / UNS / JIS / BS / GOST / AFNOR / DIN / EN
- Bending Radius: R= 1.5D, 1D, 2D, 3D, 5D, 6D, 8D, 10D
Inconel 660 Buttweld Pipe Fittings Chemical Composition:
| Element | Values % |
|---|---|
| C | 0.08 maximum |
| Mn | 2.00 maximum |
| P | 0.025 maximum |
| S | 0.025 maximum |
| Si | 1.00 maximum |
| Cr | 13.50 – 16.00 |
| Ni | 24.00 – 27.00 |
| Mo | 1.00 – 1.50 |
| Ti | 1.90 – 2.35 |
| V | 0.10 – 0.50 |
| Al | 0.35 maximum |
| B | 0.003 – 0.010 |
| Fe | Balance |
Inconel 660 Buttweld Pipe Fittings Mechanical Properties:
| Element | Inconel 660 |
|---|---|
| Tensile Strength (MPa) | 610 |
| Yield Strength (Mpa) | 270 |
| Elongation | 30 % |
Inconel 660 Buttweld Pipe Fittings Equivalent Material Grades:
| Grade | WERKSTOFF NR. | UNS |
|---|---|---|
| 660 | 1.4980 | S66286 |
Super Alloy A-286 Equivalent Materials:
| AISI 660 | AMS 5731 | AMS 5853 |
| DIN 1.4944 | ASTM A638 Grade 660 | AMS 5525 |
| AISI 662 | AMS 5805 | GE B50T81 |
| AMS 5726 | AMS 5737 | AMS 5858 |
| GE B50T12 | AMS 5732 | AMS 5804 |
| DIN 1.4943 | GE B50T1181 | AMS 5734 |
| AMS 5895 | SPS M250 | ASTM A453 Grade 660 |
Inconel 660 Buttweld Pipe Fittings Types
- Inconel 660 45 Degree Elbow
- Inconel 660 Long Radius Elbow
- Inconel 660 90° SR Elbow
- Inconel 660 180° LR Elbow
- Inconel 660 1.5D Elbow
- Inconel 660 Equal Tee
- Inconel 660 Eccentric Reducer
- Inconel 660 Long Stub End
- Inconel 660 End Caps
- Inconel 660 3D Pipe Bend
- Inconel 660 Long Radius Pipe Bend
- Inconel 660 Mitered Pipe Bend
- Inconel 660 90 Degree Elbow
- Inconel 660 Short Radius Elbow
- Inconel 660 45° LR Elbow
- Inconel 660 180° SR Elbow
- Inconel 660 3D Elbow
- Inconel 660 Unequal/Reducing Tee
- Inconel 660 Equal Cross
- Inconel 660 Short Stub End
- Inconel 660 Seamless Pipe Bend
- Inconel 660 5D Pipe Bend
- Inconel 660 Hot Induction Pipe Bend
- Inconel 660 Piggable Pipe Bend
- Inconel 660 180 Degree Elbow
- Inconel 660 90° LR Elbow
- Inconel 660 45° SR Elbow
- Inconel 660 1D Elbow
- Inconel 660 5D Elbow
- Inconel 660 Concentric Reducer
- Inconel 660 Unequal/Reducing Cross
- Inconel 660 Lap Joint Stub End
- Inconel 660 Welded Pipe Bend
- Inconel 660 10D Pipe Bend
- Inconel 660 J Pipe Bend
- Inconel 660 U Pipe Bend
Inconel 660 Similar Products
Alloy 660 Buttweld Pipe Fittings Applications
Inconel Alloy 660 Pipe Fittings can be used in a wide variety of industries to end, divide or alter the flow of fluids. These operations include the following:
- Nuclear Power Plants
- Petrochemical Facilities
- Waste Treatment Facilities
- Chemical Processing
- Cryogenic Plants
- Paper Production
- Gas Processing
- Breweries
The wide range of applications demonstrates the robustness of a Inconel 660 Pipe Fittings and how much this particular type of fitting is relied upon. We at Ample Alloys provide all necessary Material Testing Report and Documentation and provide packaging of the products i.e. Grade 660 Buttweld Fittings as per clients requirement or as per industry standards to keep products damage free during transit.
