Ample Alloys is a globally accepted Manufacturers and Exporter of ASTM A182 Alloy F255 Socket Weld Elbow, Class 150 Ferralium 255 SW Pipe Cap, UNS S32520 SW Tee, Werkstoff Nr 1.4507 SW Coupling, EN X2CrNiMoCuN25-6-3 SW Plugs, 1.4507 SW Bushing, F255 Super Duplex SW Boss, UNS S32520 SW Union, Super Duplex S32520 SW Nipple.
Table of Content
- ASTM A182 Super Duplex S32520 Socket Weld Fittings Specifications
- UNS S32520 Socket Weld Fittings Chemical Composition
- WERKSTOFF NR. 1.4507 Socket Weld Fittings Mechanical Properties
- ASME SA182 Super Duplex F255 SW Fittings Equivalent Material Grades
- Super Duplex S32520 Socket Weld Forged Fittings Types
- Alloy F255 Similar Products
- Super Duplex S32520 Socket Weld Forged Fittings Applications
- In Stock Super Duplex Socket Weld Forged Fittings Grades
- Forged Fittings Weight Chart
- Forged Socket Weld Fittings Dimensions ASME B16.11

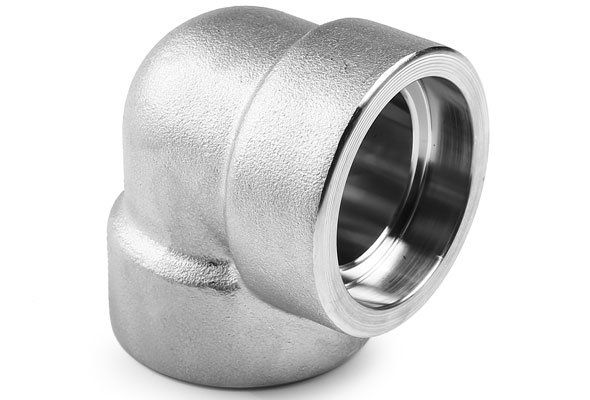

Mumbai, India-based Suppliers of Super Duplex S32520 Socket Weld 90 Degree Elbow. Socket Weld Forged Fittings Dimensions Chart, ASME Standard, Size Chart, Types, Pressure Rating, Material, HS Code, Wall Thickness, Class, Weight, Catalogue, 3D Model, PDF. Get the Best Price List of ASTM A182 Super Duplex F255 Socket Weld Full Coupling in Italy, Latin America, Dubai, Japan, Qatar, Canada, UK, USA, Australia, and Kuwait.
Super Duplex S32520 SW Fittings Specifications
- Size Range: 1/8″~ 4″ (Dn6 ~ Dn100)
- Specifications: ASTM A182 / ASME SA182
- Standards: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
- Pressure Class: 3000 LBS, 6000 LBS, 9000 LBS
- Value Added Services: Epoxy & Fbe Coating, Hot Dipped Galvanizing, Sand Blasting, Electro Polish, Threading, Soldering
- Grades: Super Duplex 255 / 1.4507 / UNS S32520
- DIN: Din 2617, Din 2605, Din 2616, Din 2615, Din 28011
- EN: En 10253-2, En 10253-1
- International Specifications: WERKSTOFF NR. / UNS / JIS / BS / GOST / AFNOR / DIN / EN
- Price: Contact info@amplealloys.com
Super Duplex S32520 Socket Weld Fittings Chemical Composition:
| Element | Super Duplex S32520 |
|---|---|
| C | 0.03 |
| Mn | 2.5 |
| Si | 1.0 |
| P | 0.04 |
| S | 0.03 |
| Cr | 21.5 -24.5 |
| Cu | 0.05-2.0 |
| Ni | 3.0-3.5 |
| N | 0.05-2.0 |
Super Duplex S32520 Socket Weld Fittings Mechanical Properties:
| Element | Super Duplex S32520 |
|---|---|
| Tensile Strength ksi (min) | 87 |
| Yield Strength 0.2% ksi (min) | 58 |
| Elongation % | 25 |
| Hardness (HB) MAX | 293 |
Super Duplex S32520 Socket Weld Fittings Equivalent Material Grades:
| STANDARD | WERKSTOFF NR. | UNS | EN Designation |
|---|---|---|---|
| Alloy F255 | 1.4507 | S32520 | X2CrNiMoCuN25-6-3 |
UNS S32520 Socket Weld Fittings Types
- UNS S32520 Socket Weld Nipple
- UNS S32520 Socket Weld Adapters
- UNS S32520 Socket Weld 45 Degree Elbow
- UNS S32520 Socket Weld Boss
- UNS S32520 Socket Weld Reducers
- UNS S32520 Socket Weld Reducing Tee
- UNS S32520 Socket Weld 90 Degree Elbow
- UNS S32520 Socket Weld Full Coupling
- UNS S32520 Socket Weld End Cap
- UNS S32520 Socket Weld Reducer Insert
- UNS S32520 Socket Weld Tee / Equal Tee
- UNS S32520 Socket Weld Lateral Tee
- UNS S32520 Socket Weld 90° Elbow Outlet
- UNS S32520 Socket Weld Cross
- UNS S32520 Socket Weld Half Coupling
- UNS S32520 Socket Weld Union
- UNS S32520 Socket Weld Branch Outlet
- UNS S32520 Socket Weld Lateral Outlet
Super Duplex S32520 Similar Products
UNS S32520 Socket Weld Fittings Applications
Super Duplex S32520 forged Socket Welding (SW) fittings are mainly used to permanently join pipes that are inserted into a recess in the fitting, flange, or valve. Once correctly inserted, fillet-type sealing welds are applied to join the pipe to the fitting. It is commonly known as SW pipe fittings, with SW elbows, SW couplings, and SW tees being examples of different types.
UNS S32520 is used for manufacturing bare forgings or forged and machined products for applications involving high-temperature service. ASTM A182 specification covers requirements such as chemical composition, mechanical properties, heat treatment, and other supplementary requirements for S32520 stainless steel forgings and forged products.
Following are list of applications & industries:
- Petrochemicals
- Power Generation
- Gas Processing
- Chemical Equipment
- Sea Water Equipment
- Pharmaceutical Equipment
- Off-Shore Oil Drilling Companies
- Pulp and Paper Industry
- Specialty Chemicals
- Pharmaceuticals
- Heat Exchangers
- Condensers
ASME B16.11 Super Duplex S32520 Socket Weld Pipe Fittings are available in three pressure ratings Class 3000, Class 6000, and Class 9000. We at Ample Alloys provide all necessary Material Testing Reports and Documentation and provide packaging of the products i.e. Grade 255 SW Fittings as per clients’ requirements or as per industry standards to keep products damaged-free during transit.
Types of Socket Weld Fittings by Class and Size:
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
In Stock Socket Weld Fittings Super Duplex Grades
